TECHNICAL SPECIFICATION FOR MULTI DRAFT SYSTEM

Scope

The scope of supply covers Design, Engineering, Manufacturing, Supply, and erection,commissioning of one number Portable Rail static Weigh Bridges of Pit less Design. Each Axle can be weighed individual and display the total weight of the metro car and individual weight of the Axle will be displayed in the Indicator and analyzed different parameter as per your specification (different between the axle weight , etc)

Specification of the Weigh Bridge

(a) Type of Weigh Bridge : Rail static Axle based

(b) Weighing Capacity : 120 T for individual metro coach

(c) Load cell : Strain gauge

(d) Type of Weighing : Individual axle based

(e) Weighing speed : 0.

(f) Direction of Weighment : Bi Direction

(g).Type of Wagon : standard gauge metro car coach

(h) No of Axles : 4

(i) wheel Load : 20 ton T (Maximum)

(j) Calibration : Automatic:

(l) Increment Selectable5/10/ 20 /50 /100 Kg

(m) Accuracy (+) / (-) 1 % per pad

(n) Power Supply : 230 V, + /- 10 %, single phase 50 Hz

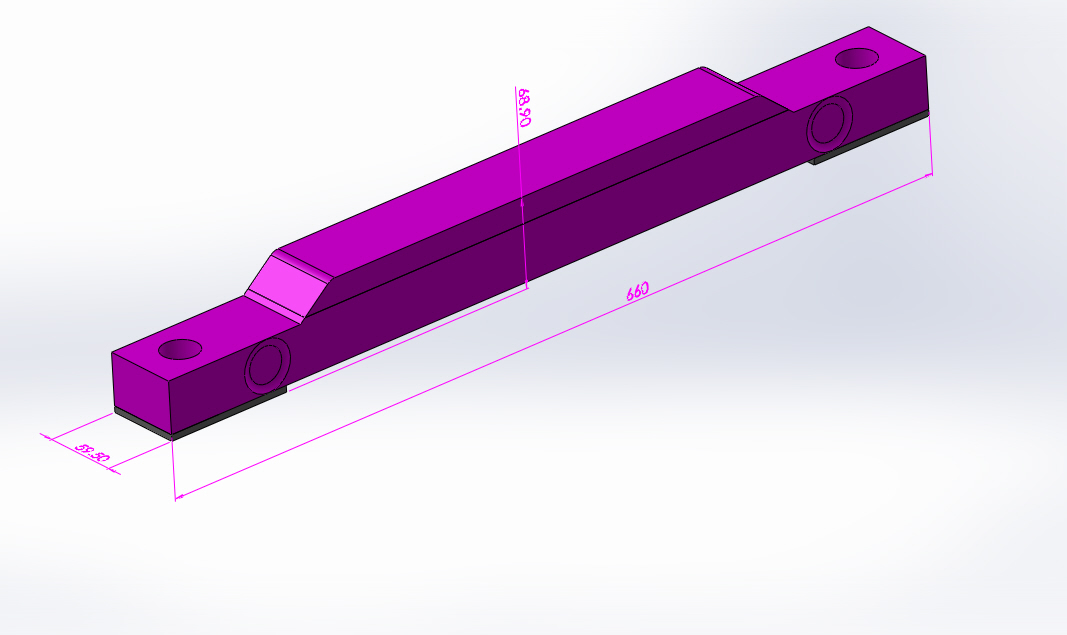

TECHNICAL PARAMETER OF LOAD CELL

Rated capacities (Emax)	20T
Sensitivity	2.0±0.01mV/V
Total error	±0.05%F.S
Creep error (30mins)	±0.03%F.S
Zero Balance	±1%F.S
TCO	±0.02%F.S/10°C
TC SPAN	±0.02%F.S/10°C
Input Impedance	750±10Ω
Output Impedance	702±3Ω,702±5Ω(L≥15m)
Insulation Impedance	≥5000MΩ
Temperature range, Compensated	-10°C~+40°C
Temperature range, operating	-30~+70°C
Maximum safe overload	150%F.S
Ultimate overload	300%F.S
Excitation, recommend	10~12V DC
Excitation, Maximum	15V DC
Protection class	IP68
Construction	Alloy Steel
Cable	12m (20t)

(a) Type : Strain gauge, hermitically sealed

(b) Protection class : IP 68

(d) Safe over load withstand capacity : 150 % rated capacity

(e) Ultimate over Load : 300 % of rated capacity

(f) Surge protection : In built

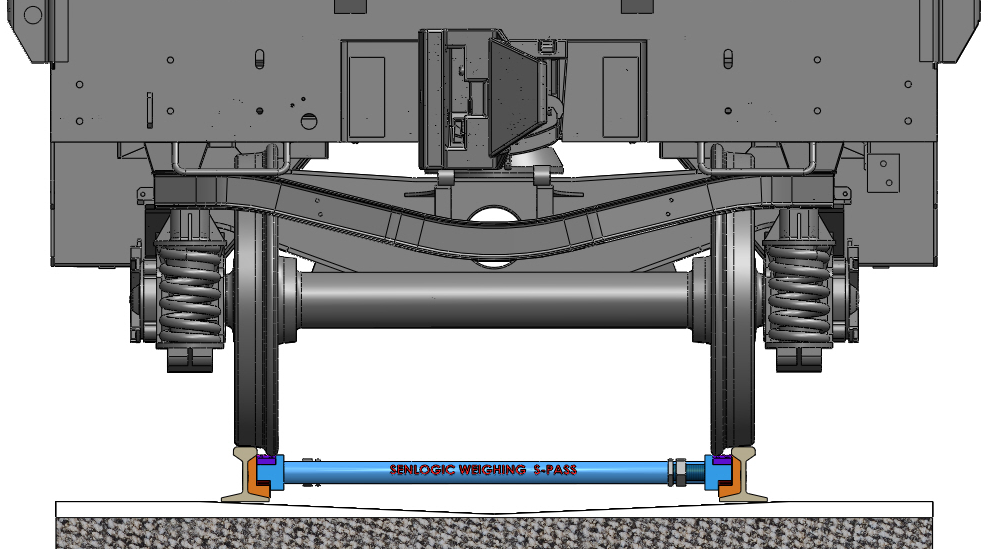

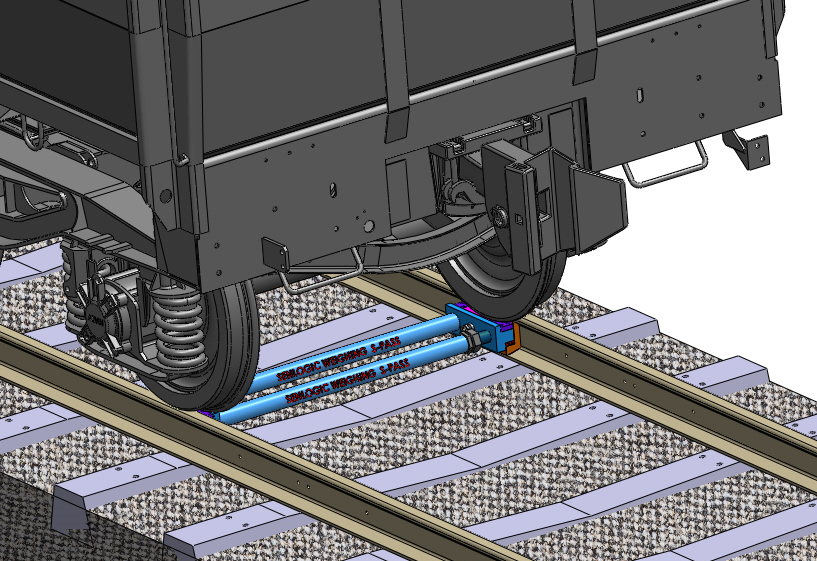

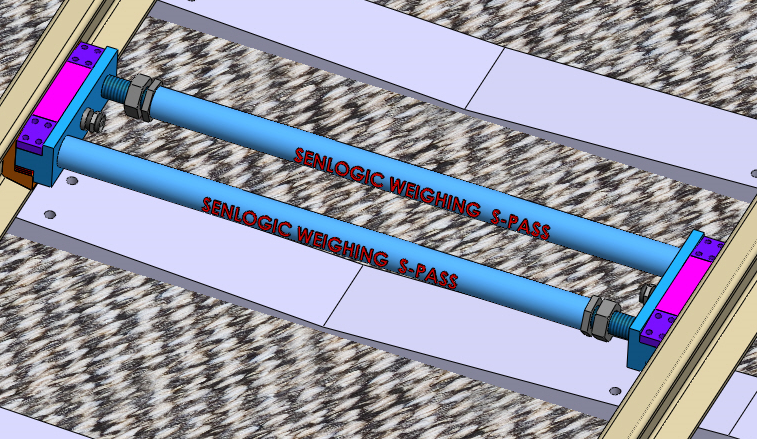

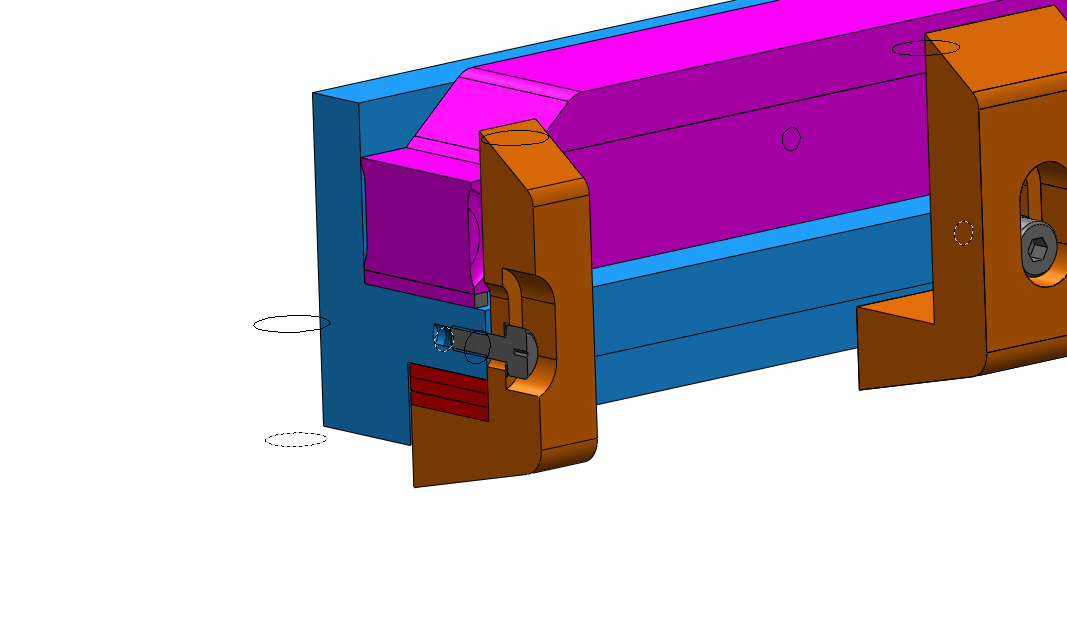

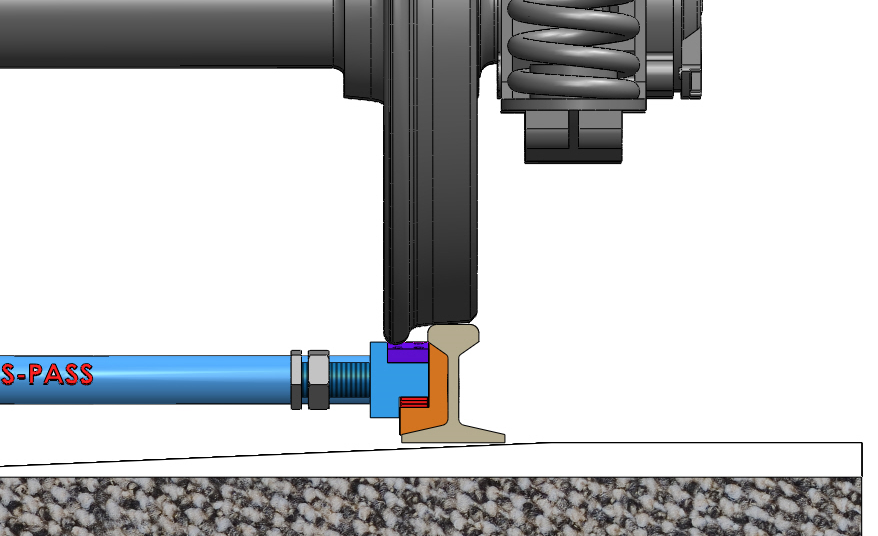

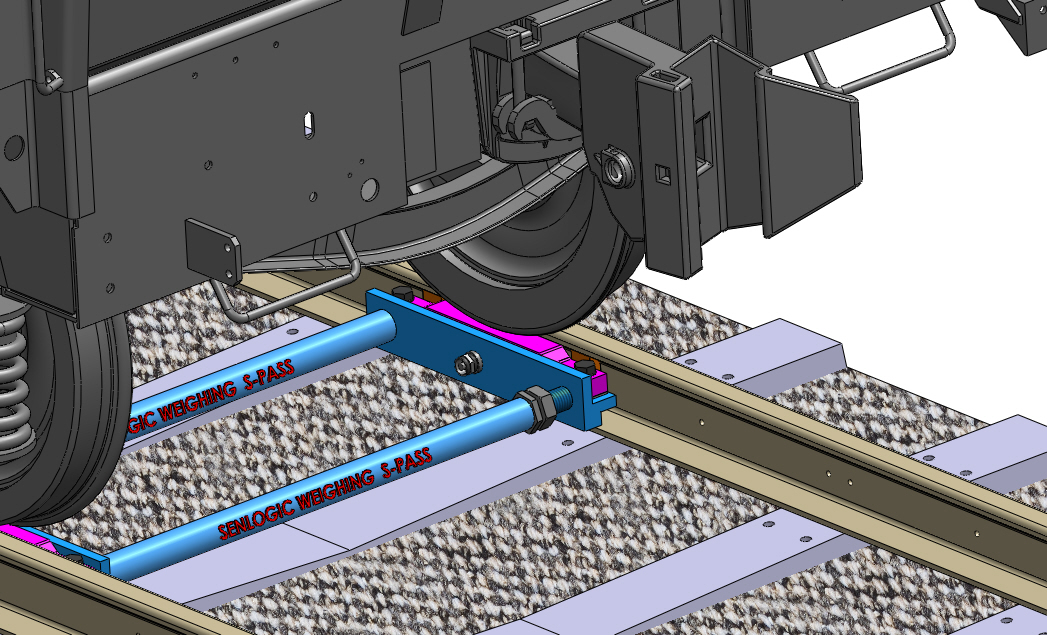

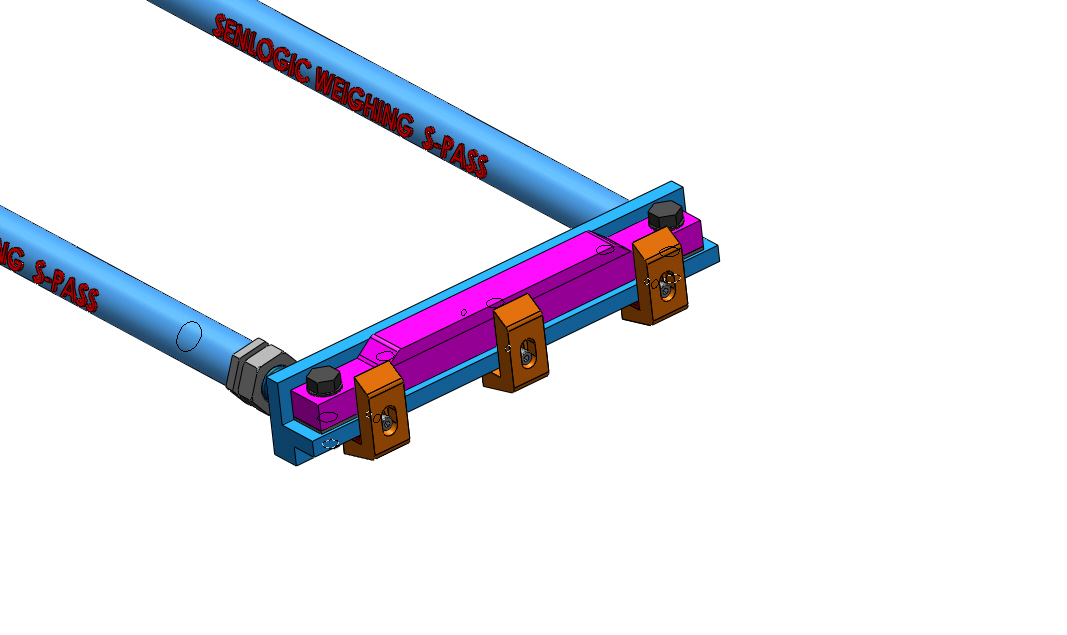

MOBI RAIL FIXING STRUCTURE ARRANGEMENT

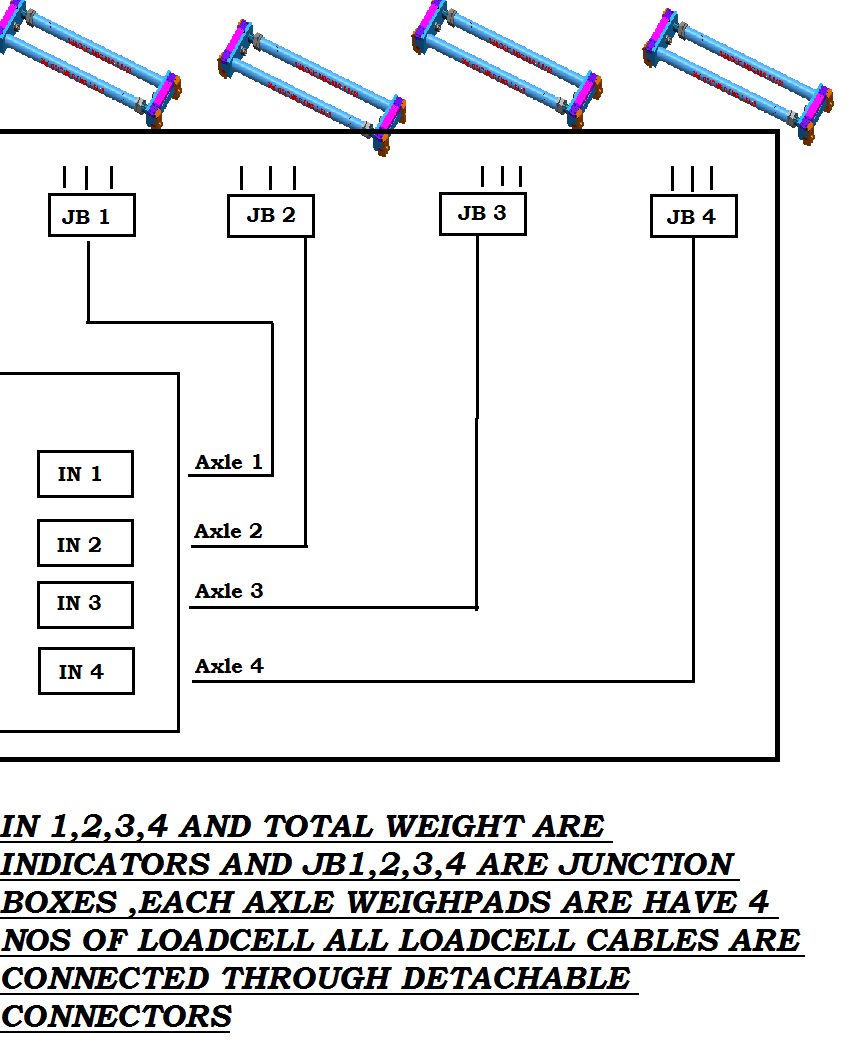

Junction Box

Junction Boxes will be Foxed Inside Are In Suitcase Form

Digitizer

We will fixup the 4 numbers of indicator in suitcase along with all connecting arrangement

Each Weigh Bridge will have independent Digitizers for processing the signal generated by the strain gauges and that by track switch logic. The Quite Digitizer will be housed in a sheet metal fabricated panel suitably reinforced. The panel will be of floor mounting type and will be of dust and vermin proof and will conform to IP: 55 protection class .A block diagram of the processor is enclosed.

The Digitizer will have microcontroller based circuitry with solid state integrated circuits to effect fast and reliable operation.. The Digitizer is constructed to the highest international standards, embodies the latest techniques and utilizes the best components to ensure highest possible reliability and integrity, even when used in harsh industrial environment. .The system can operate over a wide temperature range without affecting the accuracy and reliability the multiprocessor technology of the system allows independent processing of weight, rack logic and communication ensuring fast and accurate weighment. The system automatically monitor movement of wagon to initiate weigh cycle .Wagon movement on the Weigh Bridge is identified by Track Switch ,placed on either side of the track switch to detect direction , type of wagon , start and stop weighment. Power Supply to the Digitizer will be 230V, (+) / (-) 10 %, 50 Hz, Single phase AC. A Voltage stabilizer / Line Conditioner will also be provided. The other features, facilities are detailed below.

(1). Modular construction

(2). Analog digital converter with filter

(3). RFI /EMI signal protection to provide high level of signal integrity even in harsh Industrial environment.

(4). Automatic zero maintenance.

(5). Diagnostic facility

(6). Auto calibration

(7). Built in surge arrester for protection electronic circuits

(8). 25 mm digital display and real time clock to display date and time

(9). RS 232 interfaces

(11). Option for operation of Weighing System with the help of Digitizer without the help of PC (in case of failure of PC)

(12). Pass Word Protection

(13) .Auto / manual mode of operation of the system.

TCHNICAL SPECFICATION FROM OUR SCOPE

Sl. No.	DESCRIPTION	SPECIFICATION
1	Total Capacity	120 MT
2	Capacity per Load Pad	20 MT PER WHEEL ,40 TON PER AXLE
3	No. of Load Pads	8 AXLE PAD WILL COME ,500MM LENTH (4 frame structure for entire wagon weighment)
4	Load Pad Dimensio	500MM PER EACH WHEEL
5	Weighing Electronics	Microcontroller based
6	Over Load Protection	150% of Full Load (Minimum) for load cell
7	Least Count	10 kg/load pad
8	Accuracy	0.5% with FSR
9	Linearity Error	<0.5%

10	Repeatability	<0.5%
11	Operating Temperature	10°C to 70°C
12	Relative Humidity	Up to 85%
13	IP Protection	IP 68
14	Load pads should be of Modular and easily detachable type
15	Display & Control Panel
	a) Type of Display	Digital Display
	b) Operating Voltage	230V ± 10%, 50 Hz AC / 12V DC
	c) No. of Indicators	04 Nos, One Each per Load Pad
19	Cable	Shielded PVC insulated cable between load pad and indicator

Cable conduit

Cable should be protected with corrugated tube of sufficient mechanical strength with suitable water tight end termination PMA/LAPP make or equivalent.

Sl. No.	Description	Qty Per WB

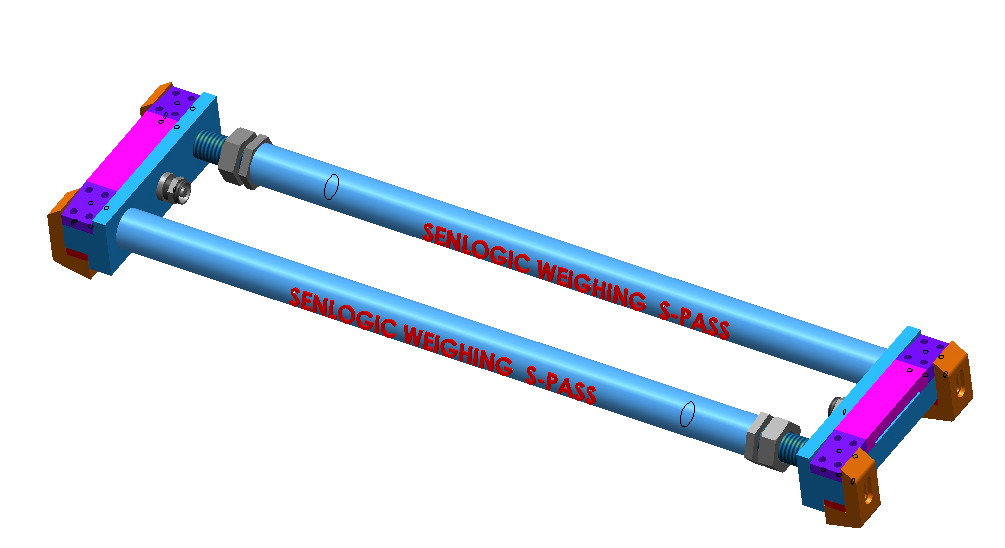

1	Weigh pad-PORTABLE S PASS 4 structure frame Constrainer pipe will be supplied for all 3 gauges of each axle will be supplied along with system	8 Nos
2	Digitizer -QUITE (Senlogic) 4 NUMBERS PLACED IN ONE Suitcase in that digitizer .along with toggle switch option for to see the calibration count ,system in buit auto zero and manual zero option are already in the system	1 No
3	Junction Box (Senlogic)	4 No
4	All required cables and conduits will be supplied seenlogic ,
5	Installation, Commissioning of the weigh bridge	1 No

PRICE SCHEDULE FOR 120 T FULL ELECTRONIC Portable RAIL static weighbridge for metro car weighing purpose

SCOPE OF SUPPLY FOR METRO RAIL CAR COACHES

Sl.

Description

Qty

UNIT PRICE

Total

Supply of 120T Fully ElectronicPortable

Rail static weighing

system to measure all eight wheels at a time

ONE No

36,00,000.00

Supervision, Installation and commissioning

One no

19,75,000.00
